Key Features:
-
- Precision 90-Degree Turn: Provides a smooth right-angle bend to navigate around farm boundaries, greenhouse structures, and obstacles.
- Leak-Proof Seal: Equipped with a high-grade rubber O-ring that guarantees complete water-tightness under both high and low-pressure applications.
- Agricultural Grade Durability: Manufactured from high-density Polypropylene (PP), resisting harsh fertilizers, UV degradation, crop chemicals, and corrosion.
- Tool-Free Mechanical Installation: Easy hand-tighten design simplifies field installations and allows quick maintenance or disassembly when redesigning lines.
- Universal Compatibility: Designed to fit standard 32mm outer-diameter HDPE and poly pipes manufactured to ISO standards.
Applications:
-
- Mainline and sub-mainline farm irrigation systems
- Borehole water reticulation and storage tank connections
- Greenhouse and nursery overhead misting or drip lines
- Livestock drinking troughs and pasture water supply piping
Specifications:

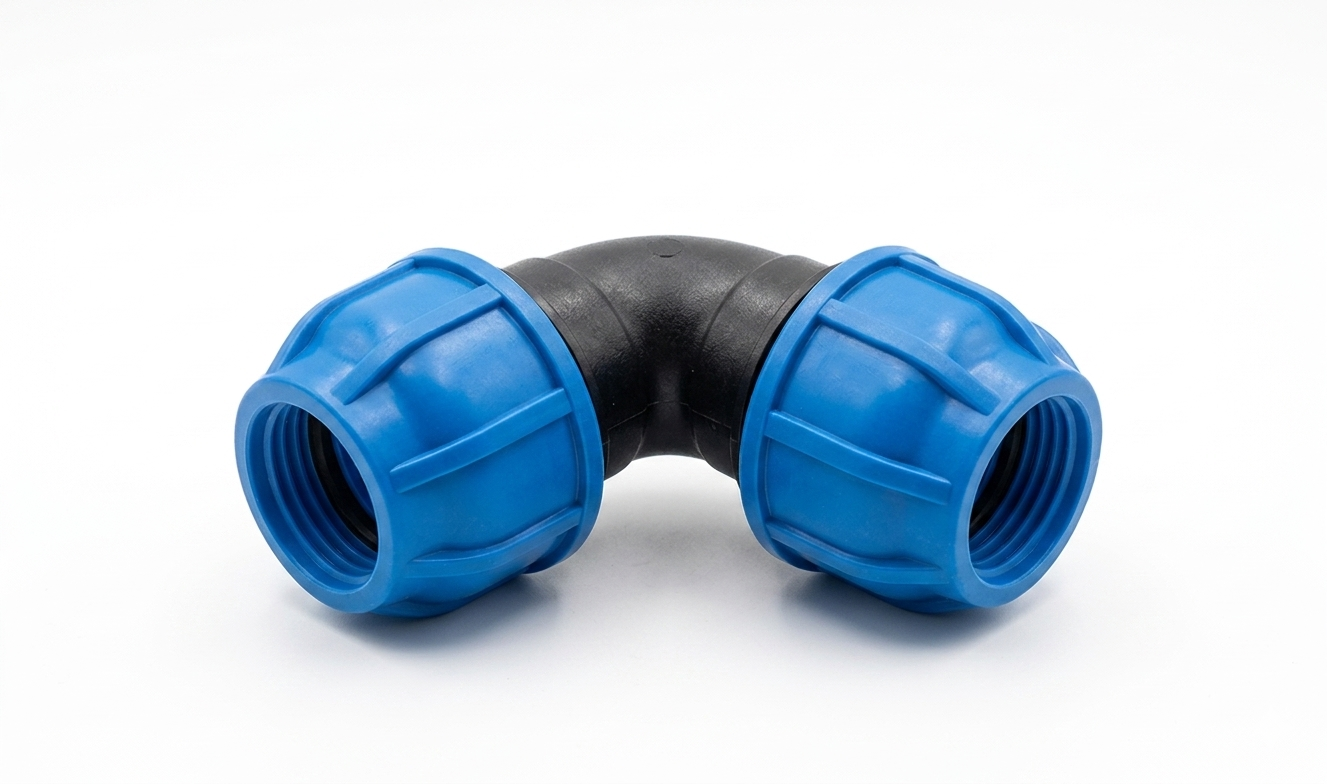

- Fitting Type: Equal 90° Elbow (Pipe to Pipe)
- Size: 32mm x 32mm
- Material: Premium Polypropylene (Body & Nut)
- Pressure Rating: Up to PN16 (16 Bar static pressure at 20°C)
