Key Features & Benefits
-
- Continuous Online Filtration: The multi-vessel modular architecture ensures uninterrupted flow to your fields. While one filter housing goes through its rapid backwash cycle, the remaining units stay completely online to handle regular system filtration.
- Smart Automation Control: Equipped with a centralized electronic control unit that initiates self-cleaning cycles based on automated time intervals or real-time pressure differential triggers.
- Deep Disc Media Efficiency: Utilizes premium, heavy-duty stacked grooves that compress together to create microscopic three-dimensional filtration pathways. This catches more sediment deep within the element compared to basic mesh screens.
- Precision Monitoring: Integrated real-time pressure gauge offers simple, on-site diagnostics to check standard operating pressure across input and output manifolds.
- Corrosion-Resistant Design: Built with high-strength, UV-treated engineering polymers and industrial coatings to easily withstand harsh agricultural chemicals, fertilizers, and tough weather conditions.
Technical Specifications
| Feature | Specification |
|---|---|
| Filter Technology | Automatic Self-Cleaning Grooved Disc |

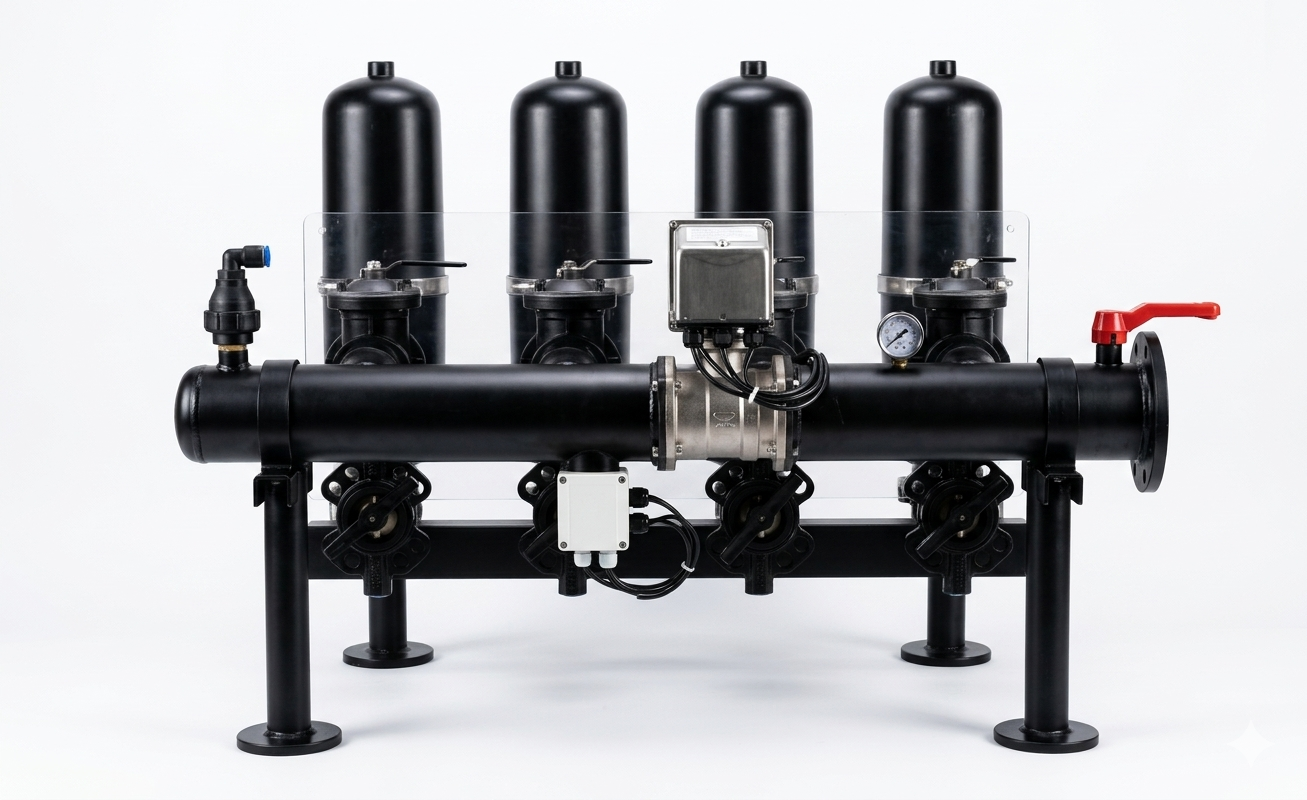

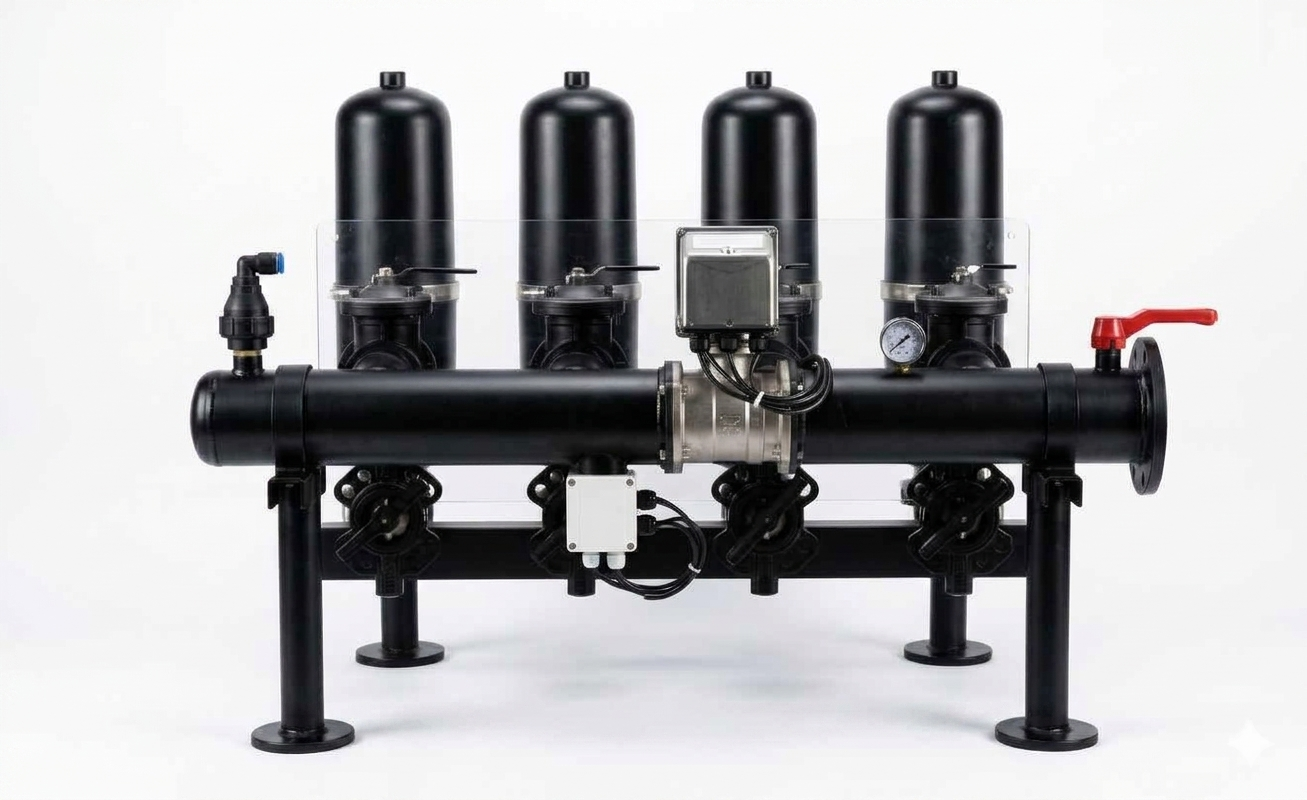

| Housing Units | 4-Vessel Modular Bank |
| Operation Mechanism | Automated Differential Pressure (DP) & Timer Activated |
| Max Pressure Rating | Up to 10 Bar (145 PSI) |
| Backwash Activation | Automatic Hydraulic/Electric Actuation |
| Manifold Mounting | Heavy-duty structured ground framing assembly |
How the Backwash Cycle Works
- Normal Filtration: Water enters through the lower inlet manifold, passing from the outside to the inside of the compressed filter disc elements, leaving trapped particles behind.
- Detection: As debris builds up, a differential pressure transmitter detects the pressure difference between the inlet and outlet lines.
- Flushing Sequence: Once the preset pressure limit is reached, the automatic controller sequences a reverse water flow through the modules one by one. The compressed discs loosen up, instantly releasing the trapped grit and rinsing it out through the dedicated wastewater drain line.
- Reset: Once clean, the module recompresses and switches right back to standard filtration without missing a beat.
